Description

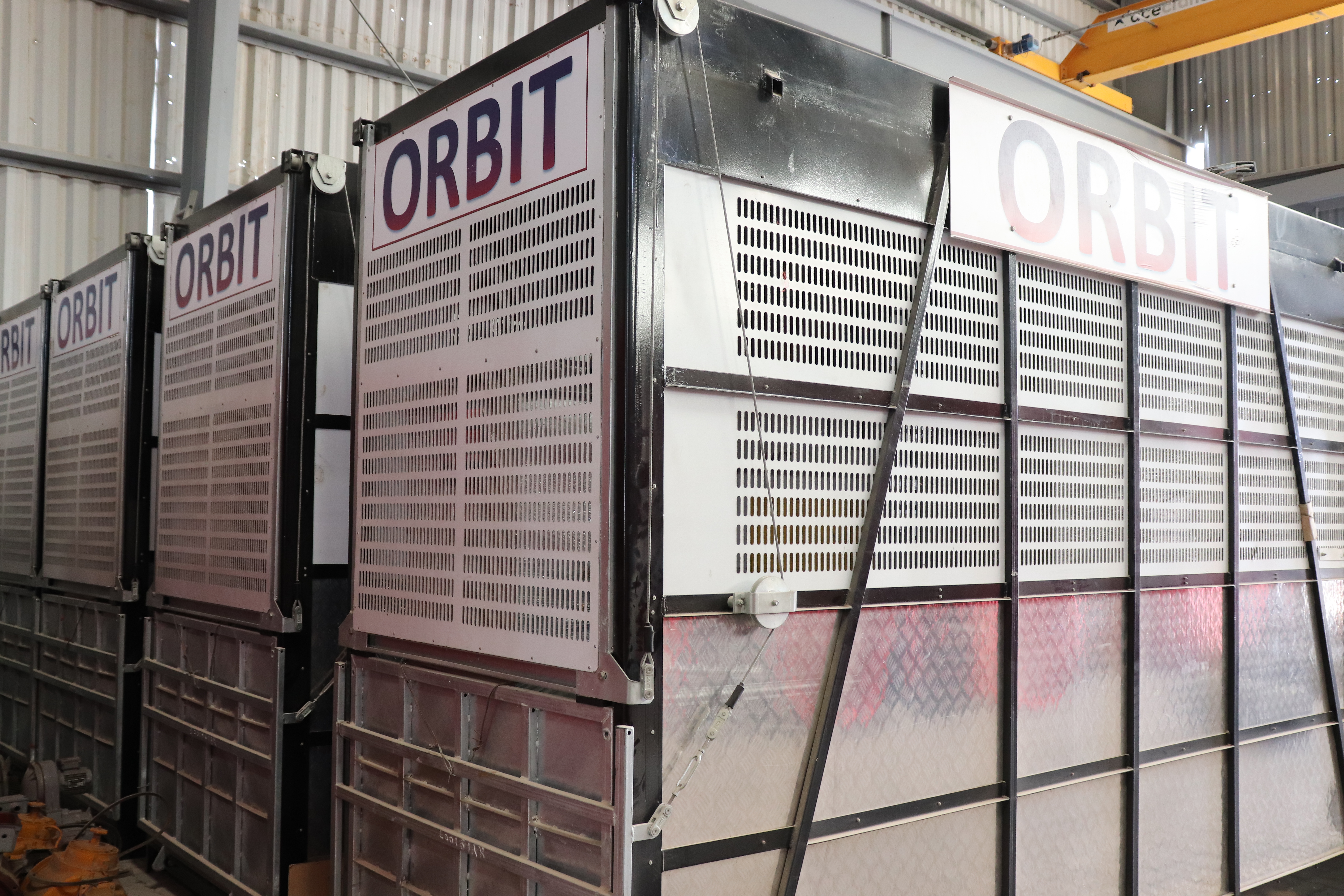

Jing Long Eng. Machinery Co., Ltd. is the number one manufacturer of hoists for the construction industry, in the world. All ORBIT products are CE certified and can be found on the biggest construction sites around the globe. ORBIT manufactures hoists that are used to carry passengers and materials at high levels.

Recognized as a reference in the sector, the ORBIT product range is adapted to all types of construction projects, whether small or large ones, such as : High rise buildings, bridges, power plants or shipyards.

General Hoists

Model Capacity(kg) Lifting speed(m/min) Motor power(kw) Counter weight(kg)
Single cage
With counter weight
SCD200 2000 0~36 2×11 1000
SCD200TD 2000 0~36 2×11 1000
SCD270TD 2700 0~36 3×11 1000
SCD320TD 3200 0~36 3×11 1200
No counter weight
SC100 1000 0~36 2×11 0
SC100TD 1000 0~36 2×11 0
SC120TD 1200 0~36 2×11 0
SC200TD 2000 0~36 3×11 0
SC270TD 2700 0~36 3×15 0
    SC320TD 3200 0~36 3×18.5 0
Twin cage
With counter weight
SCD200/200 2×2000 0~36 2×2×11 2×1000
SCD200/200TD 2×2000 0~36 2×2×11 2×1000
SCD270/270TD 2×2700 0~36 2×3×11 2×1000
SCD320/320TD 2×3200 0~36 2×3×11 2×1200
No counter weight
SC100/100 2×1000 0~36 2×2×11 0
SC100/100TD 2×1000 0~36 2×2×11 0
SC120/120TD 2×1200 0~36 2×2×11 0
SC200/200TD 2×2000 0~36 2×3×11 0
SC270/270TD 2×2700 0~36 3×15 0
SC320/320TD 2×3200 0~36 3×18.5 0


Remark :

1)Recommended cage dimension(L*W*H)(m): 2.5*1.3*2.5; 3*1.3*2.5; 3.2*1.5*2.5; 3.6*1.5*2.5;3.8*1.5*2.5;4*1.5*2.5;4.2*1.5*2.5

Cage dimension can be made according to requirement of customer

2)Various brand of motor sets available

3)Recommended normal speed hoist installation height<=150m

4)Tie-in type 1 apply for the height<=150m

5)The hoist over 200 meters with counterweight is not recommended

Frequency Conversion Building Hoists

  Model range Model Capacity (kg) Lifting speed (m/min) Motor power (kw) Inverter power  (kw) Counter weight (kg)
Single cage without counterweight
SC100G
SC100GD 1000 0~40 2×11 30 0
SC100GZ 1000 0~63 3×15 45 0
SC100GS 1000 0~96 3×22 75 0
SC120G
SC120GD 1200 0~40 2×11 30 0
SC120GZ 1200 0~63 3×15 45 0
SC120GS 1200 0~96 3×22 90 0
SC200G
SC200GD 2000 0~40 3×11 37 0
SC200GDS 2000 0~40 3×11 37 0
SC200GDN 2000 0~40 2×11 37 0
SC200GZ 2000 0~63 3×18.5 55 0
SC200GZS 2000 0~63 3×18.5 55 0
SC200GN 2000 0~96 3×18.5 90 0
SC200GSN 2000 0~96 3×18.5 90 0
SC270G
SC270GD 2700 0~40 3×18.5 55 0
SC270GZSN 2700 0~63 3×18.5 90 0
SC270GN 2700 0~96 3×22 110 0
SC270GSN 2700 0~96 3×22 110 0
Single cage with counterweight
SCD200G
SCD200GZ 2000 0~63 2×15 30 2000
SCD200G 2000 0~96 3×15 45 2000
SCD200GS 2000 0~96 2×22 45 2000
SCD270G
SCD270GZ 2700 0~63 2×18.5 37 2000
SCD270G 2700 0~96 3×18.5 55 2000
SCD270GS 2700 0~96 3×18.5 55 2000
SCD320G
SCD320GZ 3200 0~63 3×15 45 2000
SCD320G 3200 0~96 3×22 75 2000
SCD320GS 3200 0~96 3×22 75 2000
Twin cage without counterweight
SC100/100G
SC100/100GD 2×1000 0~40 2×2×11 2×30 0
SC100/100GZ 2×1000 0~63 2×3×15 2×45 0
SC100/100GS 2×1000 0~96 2×3×22 2×75 0
SC120/120G
SC120/120GD 2×1200 0~40 2×2×11 2×30 0
SC120/120GZ 2×1200 0~63 2×3×15 2×45 0
SC120/120GS 2×1200 0~96 2×3×22 2×76 0
SC200/200G
SC200/200GD 2×2000 0~40 2×3×11 2×37 0
SC200/200GDS 2×2000 0~40 2×3×11 2×37 0
SC200/200GDN 2×2000 0~40 2×3×11 2×37 0
SC200/200GZ 2×2000 0~63 2×3×18.5 2×55 0
SC200/200GZS 2×2000 0~63 2×3×18.5 2×55 0
SC200/200GN 2×2000 0~96 2×3×18.5 2×90 0
SC200/200GSN 2×2000 0~96 2×3×18.5 2×90 0
SC270/270G
SC270/270GD 2×2700 0~40 2×3×18.5 2×55 0
SC270/270GZSN 2×2700 0~63 2×3×18.5 2×90 0
SC270/270GN 2×2700 0~96 2×3×22 2×110 0
SC270/270GSN 2×2700 0~96 2×3×22 2×110 0
Twin cage with counterweight
SCD200/200G
SCD200/200GZ 2×2000 0~63 2×2×15 2×30 2×2000
SCD200/200G 2×2000 0~96 2×3×15 2×45 2×2000
SCD200/200GS 2×2000 0~96 2×2×22 2×45 2×2000
SCD270/270G
SCD270/270GZ 2×2700 0~63 2×2×18.5 2×37 2×2000
SCD270/270G 2×2700 0~96 2×3×18.5 2×55 2×2000
SCD270/270GS 2×2700 0~96 2×3×18.5 2×55 2×2000
SCD320/320G
SCD320/320GZ 2×3200 0~63 2×3×15 2×45 2×2000
SCD320/320G 2×3200 0~96 2×3×22 2×75 2×2000
SCD320/320GS 2×3200 0~96 2×3×22 2×75 2×2000



Remark :

1) Recommended cage dimension (L*W*H)(m): 2.5*1.3*2.5; 3*1.3*2.5; 3.2*1.5*2.5; 3.6*1.5*2.5;3.8*1.5*2.5;4*1.5*2.5;4.2*1.5*2.5 Cage dimension can be made according to requirement of customer

2) Various brand of motor sets available

3) Recommended normal speed hoist installation height<=150m

4) Tie-in type 1 apply for the height<=150m

5) The hoist over 200 meters with counterweight is not recommended
